7909-00045

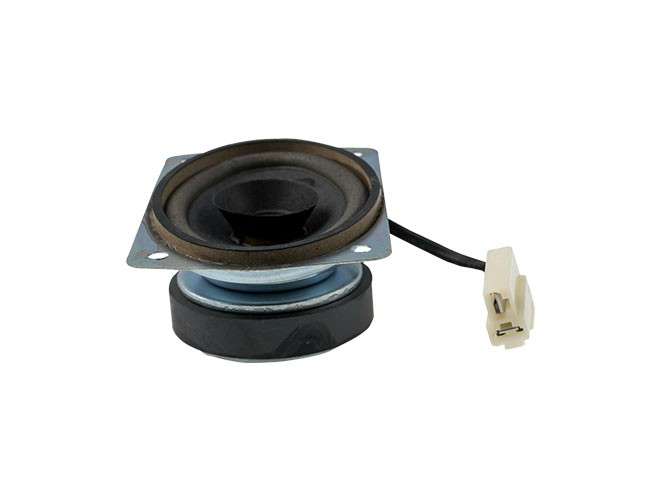

Car audio speaker
img of 7909-00045
img of detail_inquiryInquire Now
WHAT ARE YOU LOOKING FOR?
*
This field is required
Total quantity you need
*
This field is required
*
This field is required
Email format error
Due to email instability, you might miss our correspondence. Please provide your phone number for alternative contact.
This field is required
Telephone information is wrong!
Send Message
img of mask_layer_close
img of 7909-00045
Product Detail










Items

Specifications

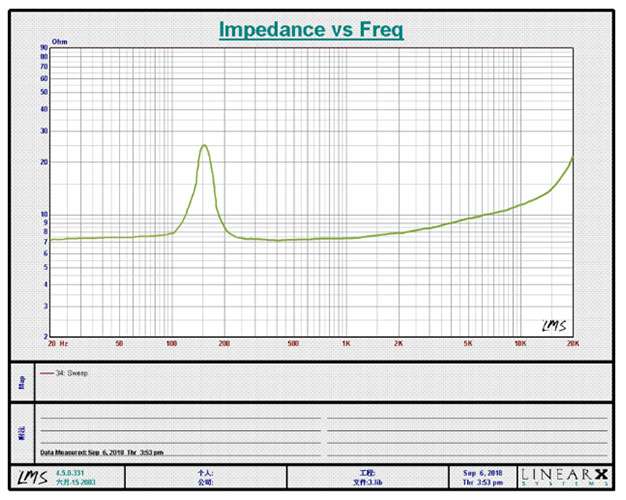

Nominal Impedance

8Ω±15% at 300Hz 1.0V

Resonance Frequency

150Hz ± 20% at 1.0V

Frequency Range

f0 ~ 15KHz -20 dB

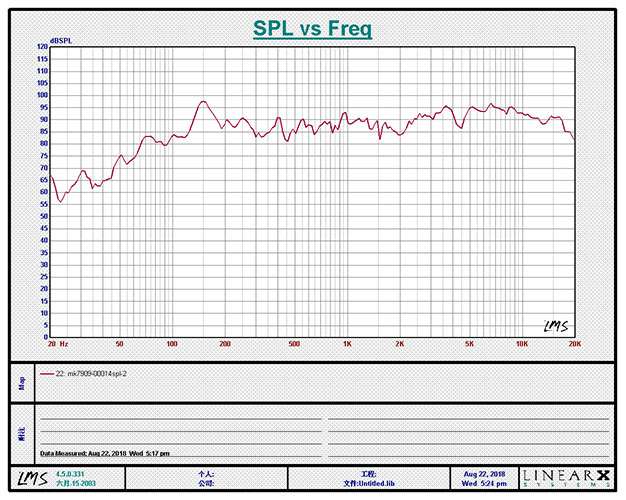

Sound Pressure Level

88 ± 3 dB @1W/0.5M AVE

at 500,600, 800,1000Hz

Buzz & Rattle Test

14.14 V at 150 - 15 KHz

Rated Input

25 W

Maximum Input

50 W

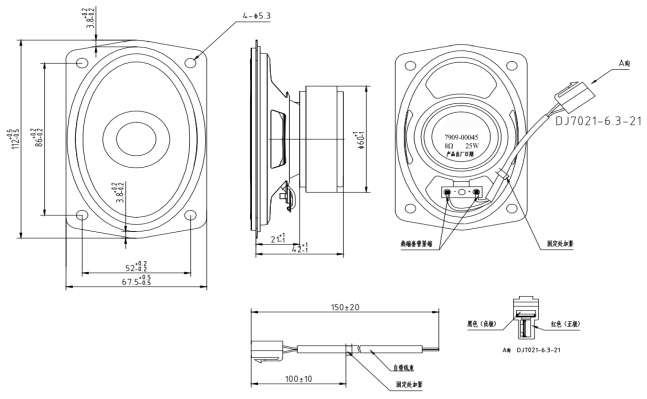

Magnetic Circuit Specifications

Ф60×Ф24×12 mm

Voice Coil Specifications

Ф19.45 mm
